Details
HEAVY-HITTING, CHUNDER-LOVING MACHINE

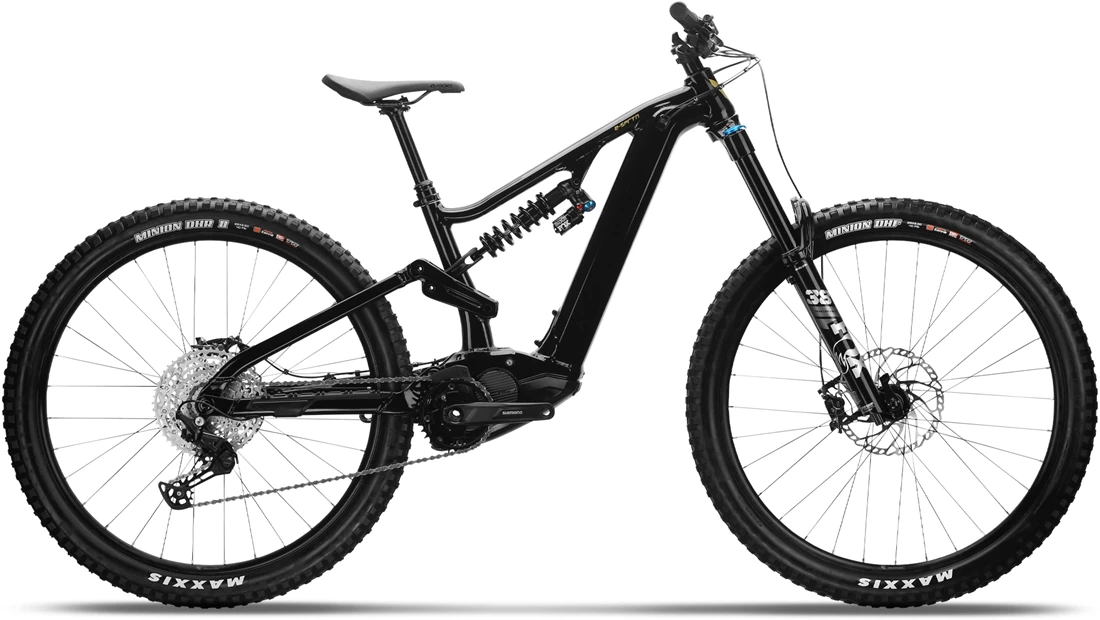

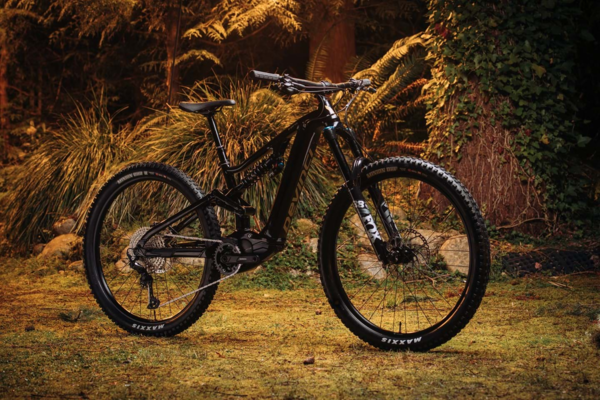

Devinci's e-Spartan salutes those about to rock with the kind of slack, aggressive roll you'd expect from the spawn of Spartan—and with the extra oomph of an e-equipped engine. Tame turbulent descents thanks to a generous 170mm of rear travel meets 180mm of finesse in the fork. And then turn around and hit turbo on the uphill. The Shimano EP8 engine boosts you to speeds of up to 32 km/h (limited to 25 km/h in Europe). Increase your range with the powerful 725Wh battery safely located in the downtube.
Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
ST (mm) | 400 | 420 | 445 | 485 |
SA | 77.3° | 77.2° | 77.1° | 77° |
HA | 64° | 64° | 64° | 64° |
REACH (mm) | 440 | 460 | 485 | 505 |
CS (mm) | 455 | 455 | 455 | 455 |
WB (mm) | 1236 | 1260 | 1290 | 1314 |
BBH (mm) | 354 | 354 | 354 | 354 |
SOH (mm) | 733 | 745 | 763 | 785 |
STACK (mm) | 625 | 634 | 643 | 652 |
HT (mm) | 95 | 105 | 115 | 125 |
Size | Rider Height (cm) |
---|---|
Small | 160-170 |
Medium | 169-179 |
Large | 178-188 |
X-Large | 187-198 |
Specs
Frame | Aluminum Optimum G04 170mm |
---|---|
Fork | Fox 38 Performance E-Bike Grip 180 | 44 Offset |
Rear Shock | Fox DHX2 Performance Elite | 230x65 |
Rims | V2 Comp | 29mm inner | TR |
Hubs |
Front: Formula DC-711 | Sealed | 6bolts | TA 15x110mm Rear: Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline |
Spokes | Sapim Stainless 14G w/Nylok |
Tires |
Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR Rear: Maxxis Minion DHRII | 29x2.4wt | 3C MaxxGrip DoubleDown TR |
Crankset | Shimano STEPS EM600 |
Chainrings | Shimano SM-CRE80 34T |
Shifters | Shimano Deore M6100 | 12s |
Rear Derailleur | Shimano Deore M6100 | 12s |
Cassette/Freewheel | Shimano M6100 | 12s | 10-51T | Microspline |
Chain | Shimano Deore M6100 | 12s |
Brakes | Shimano XT M8120/M8100 | 4 Pistons |
Rotors | Shimano RT66 | 203mm |
Handlebars | V2 Pro | B:35mm | R:25mm | W:780mm |
Tape/Grips | Devinci Performance | w/lock-on |
Stem | V2 Pro | B:35mm | L:40mm | 0° |
Headset | FSA SX Pro | 1.5 |
Seatpost | TranzX | 34.9mm | 1x Lever |
Saddle | SDG BELAIR Max eMTB |
Pedals | Sold Separately |
Accessories & Extras | Chain Guide: E*thirteen E*Spec PLus | ISCG05 |
Motor | Shimano STEPS EP800 | 250W | 85Nm |
Battery | BMZ 725WH |
Controller/Display | Shimano STEPS EM800 |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Goldland / Medium | 883385206645 | FE22065311 | 210000036127 |
Goldland / Large | 883385207666 | FE22065411 | 210000036121 |
Goldland / X-Large | 883385207673 | FE22065511 | 210000036129 |
