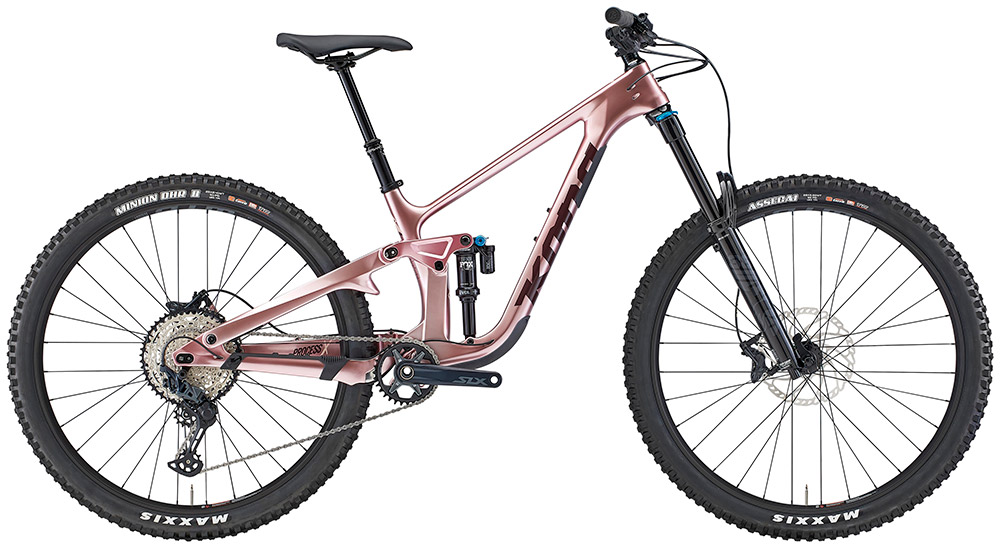

Kona Process X CR

Kona Process X CR
This item is currently not available.


For the rider looking to go big on terrain but not break the bank, the Process X CR is a perfect choice. A carbon frame is laced with a durable, but practical build to ensure your money goes where it matters. The 170mm of ultra-squishy travel makes quick work of those features you've been eyeing up. And don't be fooled by the numbers, this bike may go big on the descents, but it is built to ensure you make it to the top with plenty of gas left in the tank.

Wheel size:
- Size Small: 29-inch (front) / 27.5-inch (rear)
- Sizes Medium – X-Large: 29-inch

Designed to be lightweight and built to demanding standards. Carbon fiber has long been praised for its weight and strength, but rather than chase grams, we place our efforts on the performance that is possible when the right high-modulus fibers are in the right places. Our designers work very closely with our manufacturer to ensure there is no compromise to the desired ride characteristics, durability and – finally – weight stipulations that we expect from our bikes.

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12x148mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.

Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call "pure shock movement," whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.


Geometry Chart:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (mm) 380 380 420 450
Top Tube Length (mm) 569 594 623 662
Reach (mm) 440 465 490 525
Stack (mm) 615 615 625 635
Standover (mm) 690 700 710 720
Head Tube Angle 63.5° 63.5° 63.5° 63.5°
Head Tube Length (mm) 94 94 105 116
Seat Tube Angle 78.2° 78.2° 78° 77.9°
Chainstay Length (mm) 435 (450) 435 (450) 435 (450) 435 (450)
Bottom Bracket Drop (mm) 20 30 30 30
Bottom Bracket Height (mm) 345 345 345 345
Wheelbase (mm) 1213 (1228) 1238 (1253) 1268 (1283) 1308 (1323)
Front Center (mm) 779 804 834 874
Fork Length (mm) 581 581 581 581
Fork Offset (mm) 44 44 44 44
Frame SizeHeight (inches)Height (cm)Inseam (inches)Inseam (cm)
X-Small 4'10"-5'1" 147-155cm 24"-27" 61-69cm
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small, Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium, Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large, X-Large 5'11"-6'2" 180-188cm 32"-35" 81-89cm
Large, X-Large 6'1"-6'5" 185-196cm 33"-36" 84-91cm


Frame Kona Carbon 162mm Travel
Fork Fox 38 Performance Grip Damper 170mm
Rear Shock Fox DPX2 Performance Elite Trunnion
Rims WTB KOM Trail i30 TCS
Hubs Front: DT Swiss 370 110x15mm
Rear: DT Swiss 370 148x12mm
Spokes Stainless Black 14g
Tires Front: Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Rear: Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Bottom Bracket Shimano PF92
Crankset Shimano SLX
Chainrings 32t
Shifters Shimano XT 12spd
Rear Derailleur Shimano SLX 12spd
Cassette/Freewheel Shimano SLX 10-51t 12spd
Chain Shimano Deore 12spd
Brakes Shimano Deore
Rotors Shimano RT66 203mm
Brake Levers Shimano Deore
Handlebars Kona XC/BC 35
Tape/Grips Kona Key Grip
Stem Kona XC/BC 35
Headset FSA Orbit 1.5 EP ZS
Seatpost TranzX Dropper +RAD Internal w/Shimano Lever 31.6mm
Saddle WTB Volt
Pedals Sold separately

* Subject to change without notice.
