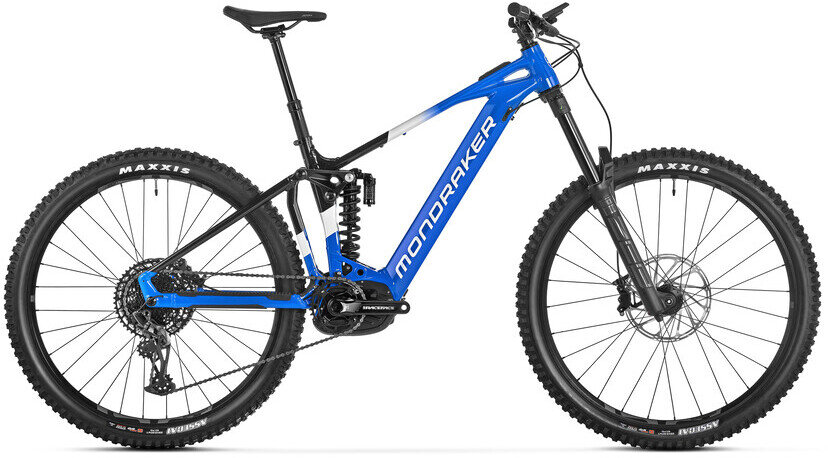

Mondraker Level R
Details
You like shredding the downs more than grinding the ups. We get that. That said you want something more versatile than an eDH bike. We get that too. That’s why we made our most radical ebike, the Superenduro. The bike we made to mirror you and the trails you love.
Size guide and more - https://mondraker.com/ca/en/level-r
Click the Text us button below to answer any questions. Or call us in-store at 778-340-3001
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 602 | 622 | 647 | 667 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 110 | 110 | 130 | 130 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 450 | 490 |
| Bottom Bracket Drop (mm) | 15 | 15 | 15 | 15 |
| Reach (mm) | 450 | 470 | 490 | 510 |
| Stack (mm) | 632 | 632 | 652 | 652 |
| Chainstay Length (mm) | 455 | 455 | 455 | 455 |
| Wheelbase (mm) | 1250 | 1270 | 1290 | 1310 |
Specs
| Frame | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
|---|---|
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Motor | Bosch Performance Line CX GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 750Wh |
| Fork | RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Rear Shock | RockShox Super Deluxe coil Select R, 225x75mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
| Rims | e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
| Hubs | Front hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts / Rear hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Tires | Front tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead / Rear tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Brake Levers | Sram DB8, tool reach adjust, lever pivot bushings |
| Brakes | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Pedals | Sold Separately |
| Colour | Carrera Blue / Midninght Blue / Crystal White |
* Subject to change without notice.
Videos
Zero Suspension System | Mondraker's MTB Suspension Platform
ZERO is Mondraker’s proprietary most efficient, best performing and super capable suspension system. ZERO is individually designed, set up and optimised for the best pedalling efficiency and biggest hit capability on each Mondraker full suspension model across the range, from little F-Trick to Summum Carbon World Cup & World Championship winning downhill bikes. ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Large | 8435392887588 | mo-010-24us459 | 210000041124 |
