Details

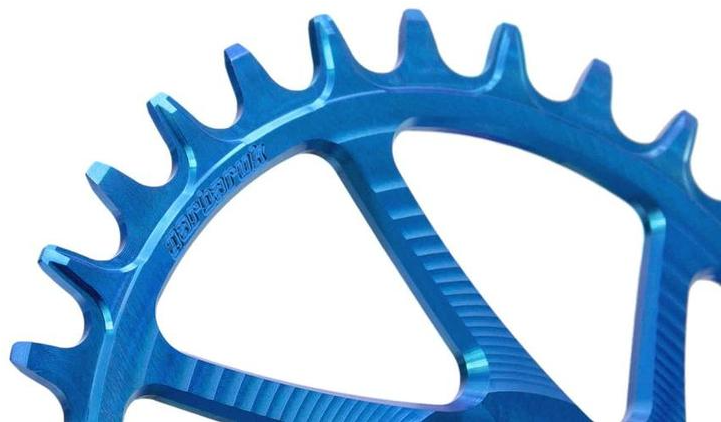

Special tooth shape guarantees a tighter contact with chain
- Boost Spacing
- Chamfered edges and wide mud gap keeps the ring from getting muddy
- Increased tooth height improves chain retention
- Variable teeth thickness prevents chain dropping
- Offset: 5.4mm
- 7075-T651 Anodized Aluminum Alloy
- Compatible cranksets: SRAM X9, X1, NX, GX, X0, X01, XX1, X01 Eagle, XX1 Eagle. Cane Creek eeWings Mountain.
- Chainline: 49.6mm
- Weight: 39g
- Compatibility: 9,10,11-speed chains, 12-speed SRAM MTB (Eagle&T-Type), KMC, Shimano HG+ chains
Part Numbers
Option | UPC | MPN |
---|---|---|
Blue / Direct Mount / 28T | 05907441528504 | 5907441528504 |
Blue / Direct Mount / 30T | 05907441528641 | 5907441528641 |
Blue / Direct Mount / 32T | 05907441528788 | 5907441528788 |
Gold / Direct Mount / 28T | 05907441533188 | 5907441533188 |
Gold / Direct Mount / 30T | 05907441533201 | 5907441533201 |
Gold / Direct Mount / 32T | 05907441533225 | 5907441533225 |
Green / Direct Mount / 28T | 05907441528511 | 5907441528511 |
Green / Direct Mount / 30T | 05907441528658 | 5907441528658 |
Green / Direct Mount / 32T | 05907441528795 | 5907441528795 |
Orange / Direct Mount / 28T | 05907441528528 | 5907441528528 |
Orange / Direct Mount / 30T | 05907441528665 | 5907441528665 |
Orange / Direct Mount / 32T | 05907441528801 | 5907441528801 |
Purple / Direct Mount / 28T | 05907441528559 | 5907441528559 |
Purple / Direct Mount / 30T | 05907441528696 | 5907441528696 |
Purple / Direct Mount / 32T | 05907441528832 | 5907441528832 |
Red / Direct Mount / 28T | 05907441528535 | 5907441528535 |
Red / Direct Mount / 30T | 05907441528672 | 5907441528672 |
Red / Direct Mount / 32T | 05907441528818 | 5907441528818 |
Silver / Direct Mount / 28T | 05907441528542 | 5907441528542 |
Silver / Direct Mount / 30T | 05907441528689 | 5907441528689 |
Black / Direct Mount / 30T | 05907441528634 | 5907441528634 |
Black / Direct Mount / 32T | 05907441528771 | 5907441528771 |
