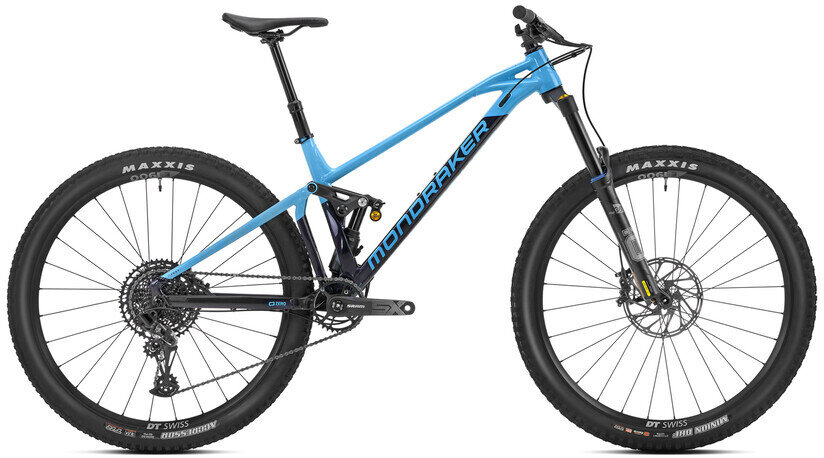

Mondraker Foxy R

Mondraker Foxy R
  • Size: Large
  • Size: Large
$4,549.99
$6,499.99
Size: Large
Please select options Unavailable

Details

The FOXY R comes built up with a 6061 ALLOY STEALTH EVO aluminium frame with hydroformed tubes. Its uses our prestigious ZERO SUSPENSION SYSTEM, as well as having FORWARD GEOMETRY; a benchmark for current bikes. It’s got 160mm travel at the front and 150mm at the rear, using an Öhlins TTX fork complimented by TTX Air shock from the same brand at the back. It also highlights SRAM’s NX Eagle/SX Eagle 12-speed drivetrain, e*thirteen’s LG1 Plus Enduro wheels, and is rounded off with SRAM’s G2 brakes and ONOFF components.

Size guide and more - https://mondraker.com/ca/en/2023-foxy-r/

Click the  Text us  button below to answer any questions. Or call us in-store at 778-340-3001

The advantages and key features of FORWARD GEOMETRY are improved safety and confidence when descending at speed combined with sharper, more direct handling and better tracking; plus, more stability on technical climbs and rough terrain combined with better grip and improved control.
Sizes:
SMMDLGXL
Top Tube Horizontal (mm) 606 629 654 676
Head Tube Angle (deg) 66 66 66 66
Head Tube Length (mm) 90 100 115 130
Seat Tube Angle (deg) 76 76 76 76
Seat Tube Length (mm) 380 420 470 510
Bottom Bracket Drop (mm) 21 21 21 21
Reach (mm) 450 475 495 515
Stack (mm) 606 615 630 643
Chainstay Length (mm) 435 435 435 435
Wheelbase (mm) 1193 1222 1248 1274

Specs

Frame Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Fork Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Rear Shock Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Rims e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Hubs Front hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts / Rear hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires Front Tire Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead | Rear Tire Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm
Crankset Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Shifters Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Rear Derailleur Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Cassette Sram XG-1230, 11-50T, 12s
Chain Sram SX Eagle, 12s, Powerlock
Brake Levers Sram G2 R, SwingLink, tool-free reach adjust
Brakes Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Handlebars ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Tape/Grips ONOFF Twin, 1lock-on, 135mm
Stem ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Headset ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat Post ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Pedals Sold Separately
Color(s) Light Blue/Deep Purple

* Subject to change without notice.

Videos

Zero Suspension System | Mondraker's MTB Suspension Platform

ZERO is Mondraker’s proprietary most efficient, best performing and super capable suspension system. ZERO is individually designed, set up and optimised for the best pedalling efficiency and biggest hit capability on each Mondraker full suspension model across the range, from little F-Trick to Summum Carbon World Cup & World Championship winning downhill bikes. ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.

Part Numbers

Option UPC MPN Store SKU
Large 8435392888936 mo-010-23us107 210000041127
