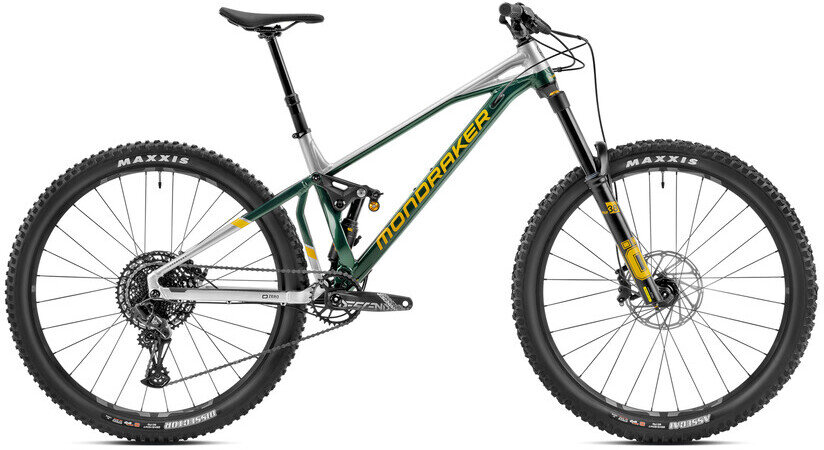

Mondraker Superfoxy R

Mondraker Superfoxy R
  • Size: Large
  • Size: Large
$5,039.99
$7,199.99
Size: Large
Please select options Unavailable

Details

If you’re looking for a super enduro from Mondraker with everything you’ll ever need to gas it when the trail points downwards but a carbon frame just isn’t on your list of priorities, the SUPERFOXY R is the bike for you. It’s got all the cherry-picked components, starting with the Öhlins suspension front and back, ONOFF’s range-topping components, e*thirteen’s LG1 Plus Enduro wheels... and best of all, its spectacular frame made of our top of the range aluminium: STEATH ALLOY. Spectacular design, beautiful colours, and everything designed to be taken to the limit with nothing to hold you back.

Size guide and more - https://mondraker.com/ca/en/2023-superfoxy-r

Click the  Text us  button below to answer any questions. Or call us in-store at 778-340-3001

The advantages and key features of FORWARD GEOMETRY are improved safety and confidence when descending at speed combined with sharper, more direct handling and better tracking; plus, more stability on technical climbs and rough terrain combined with better grip and improved control.
Sizes:
SMMDLGXL
Top Tube Horizontal (mm) 605 625 650 670
Head Tube Angle (deg) 65 65 65 65
Head Tube Length (mm) 100 110 130 130
Seat Tube Angle (deg) 76 76 76 76
Seat Tube Length (mm) 380 420 470 510
Bottom Bracket Drop (mm) 20 20 20 20
Reach (mm) 450 470 490 510
Stack (mm) 621 621 639 639
Chainstay Length (mm) 445 445 445 445
Wheelbase (mm) 1224 1245 1273 1293

Specs

Frame SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Fork Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Rims e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Hubs Front hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts / Rear hub e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires Front Tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead | Rear Tire Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm
Crankset Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Shifters Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Rear Derailleur Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Cassette Sram XG-1230, 11-50T, 12s
Chain Sram SX Eagle, 12s, Powerlock
Brake Levers Sram DB8, tool reach adjust
Brakes Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Handlebars Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Tape/Grips Onoff Twin, 1lock-on, 135mm
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat Post Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Pedals Sold Separately
Color(s) Gloss British Racing Green / Racing Silver / Yellow

* Subject to change without notice.

Videos

Zero Suspension System | Mondraker's MTB Suspension Platform

ZERO is Mondraker’s proprietary most efficient, best performing and super capable suspension system. ZERO is individually designed, set up and optimised for the best pedalling efficiency and biggest hit capability on each Mondraker full suspension model across the range, from little F-Trick to Summum Carbon World Cup & World Championship winning downhill bikes. ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.

Part Numbers

Option UPC MPN Store SKU
Large 8435392889131 mo-010-23us135 210000041125
